ALUMINIUM FORGED PRODUCTS
Forged products – are produced according to a number of national and ‎international standards such as BS1472, DIN 1749, AMS 412G, ASTM B 247-02a, ‎ASTM B91 –97 in in alloys 2014-T652, 5083-O, 5083-H111, 6061-T652, 7075-T652 ‎& 7075-T7352‎
Forging dimensions:‎

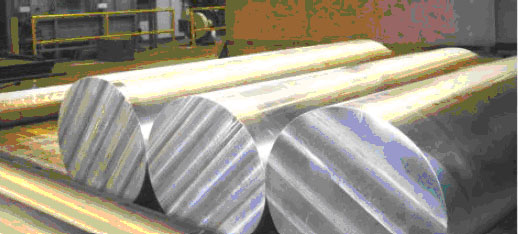

Forged Plate & Bar:‎
Diameter/side, mm‎ Maximum length, mm‎
‎300 – 500‎ ‎3,000‎
‎‎501 – 700‎ ‎2,500

Forged block:‎
Thickness, mm‎ Maximum width & length, mm‎
‎‎150 – 700‎ ‎‎1,500 x 3,000‎
Die-forging – Die-forgings can be produced with projection area ranged from 100 up ‎to 12,500 cm2 (39.40 – 4921.25 square inches) weight from 0.1kg up to 1,500 kg.‎
Alloy grade / Temper ‎ Thickness ‎
‎‎‎2014-T6, 5083-H111, 6061-T6, 7075-T6, ‎‎7050-T74‎ ‎‎Up to 6 inch (152.4mm) inclusive ‎
Forged rings are available in unique sizes in accordance with international ‎standards ASTM-B247-02a, AMS-QQ-A367, AMS4127, AMS4133, AMS4310, ‎AMS4312, AMS4314, AMS4132 in alloys 2014, 2017, 2219, 2618, 5083, 6061, 6082, ‎‎7075 and other upon request.‎
Dimensions limitations are: diameter up to 4,500 mm, height up to 600mm, weight up ‎to 3,000 kg, which only few factories can produce in the world.‎
